Endoscopy for Five Medical Departments

Suitable for medical scenarios such as otolaryngology, orthopedics, general surgery, urology, neurology, gynecology, plastic surgery, and more.

Endoscopy for Five Medical Departments

High-Performance Large Capacity Storage System

Lanodo Technology specializes in custom-developing endoscope hosts for various medical departments, including ENT, orthopedics, general surgery, urology, neurology, gynecology, and plastic surgery.

  • Octa-core 2.0GHz
  • 1920*1080P
  • 10.1-inch HD
  • 4G+64G Storage
  • Dual-band WiFi
  • Aviation Connecto
  • Type-C /USB
  • Various Modules

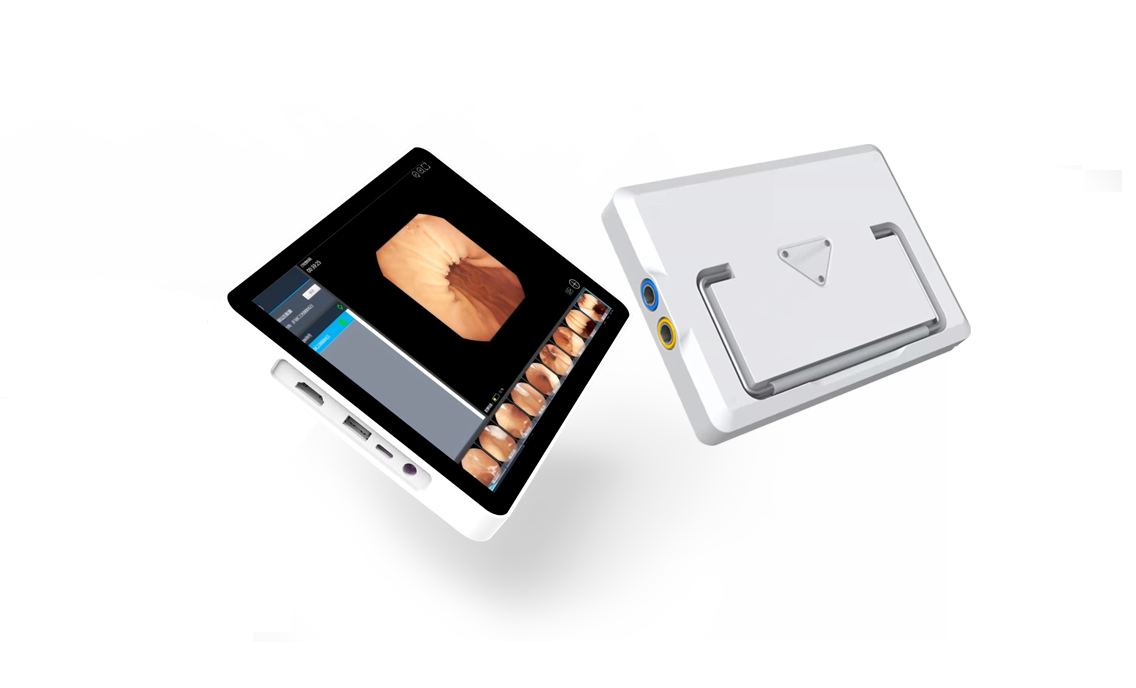

All-Department Endoscope Display Terminal

 ·  8-core 2.4GHz CPU, equipped with the Android  system, provides a smooth and superior experience.

· 4GB RAM+64GB ROM, large memory for peace of mind, smoother multitasking processing.

Ultra-clear large screen, all in one glance

· 10.1-inch ultra-clear large screen with a resolution of 1920*1200

· Clear display of chart data, effortless multitasking on the same screen.

The shell is corrosion-resistant, making it easier to clean.

The shell is made of antibacterial materials that meet the standard, with an antibacterial rate of over 99.9% certified by the authorities. It can withstand regular disinfection with commonly used disinfectants and alcohol wipes, effectively preventing the spread and cross-infection of bacteria through wiping equipment, making medical work safer.

Rich Expansion Interfaces

Integrated with rich high-speed interfaces, supporting USB, HDMI, TYPE-C, DC, aviation connectors, etc., it can connect to multiple peripheral devices simultaneously, providing enhanced connectivity for various high-speed transmission applications and supporting future high-performance expansions.

Longer Battery Life, Better Performance

Equipped with a 10000mAh large battery, the back cover adopts a one-touch ejection battery buckle design, making battery replacement as quick as lightning.

Paired with 18W fast charging, no need to worry about running out of power.

Product specifications
  • Basic Specifications
  • Processor:
    MT8765(4*A53 1.5GHz)
    MT8768(8*A53 2.0GHz)
    MT8786(2*A75 2.0GHz+6*A55 1.8GHz)
  • System:
    Android
  • Memory:
    1G/2G/4G/6G/8G DDR
  • Storage:
    8G/16G/32G/64G/128G ROM
  • MicroSD Card:
    Supports up to 128GB
  • SIM Card:
    Single SIM/Dual SIM Dual Standby
  • Display:
    8 inches/10.1 inches; Resolution 800/1080/1200
  • Touch:
    Single-point/5-point/10-point touch; supports various modes like gloves, wet hands, handwriting, etc.
  • Camera:
    2M/5M/8M/13M/16M/21M;PDAF
  • Network:
    4G LTE
  • WIFI:
    IEEE 802.11 ac/a/b/g/n; supports 2.4GHz/5GHz dual-band Wi-Fi
  • Bluetooth:
    BT5.0
  • GNSS:
    GPS/BeiDou/Galileo/GLONASS/QZSS/AGPS
  • NFC:
    13.56MHz; supports various standards including ISO14443A/B, ISO15693, MIFARE, FeliCa, etc.
  • Sensors:
    G-sensor/gyroscope/magnetic sensor/distance/light sensor
  • Charging:
    Supports PE, PD fast charging, fast charging power 18W
  • Special Features
  • Scanner:
    Supports mainstream scanners N6603/N6703/N6803/SE4710/CM60/CM30/T20, etc.
  • HDMI:
    Can be screen-projected to a large screen via HDMI
  • Professional aviation connector, reliable contact without detachment
  • Fixed Bracket:
    The device comes with a bracket for convenient and quick use
  • Custom Highlights:
    The shell is made of special materials, corrosion-resistant, suitable for hospital alcohol wipe scenes
    Professional aviation plug ensures stable operation of peripherals for a long time, no need to worry about abnormalities caused by plug delivery
    Powerful electrostatic protection, safe and reliable (±8 KV contact discharge, ±15 KV air discharge)
  • Application Scenarios:
    Suitable for medical scenarios such as ENT department, orthopedics, general surgery, urology, neurology, gynecology, plastic surgery, etc.
